Direct-Drive Circulation Fan
38" 45" 55" 72" 86" 98" 114"
Energy-saving and efficient ventilation and
cooling equipment suppliers
Bonawind fans are engineered for superior performance with a unique H-shaped rear bracket, ensuring stable operation without any impact on the casing.
Powered by an external rotor direct-drive EC motor, they deliver high torque, low power consumption, and minimal heat rise, extending the motor’s lifespan.
Plus, with App control, you can easily adjust speeds for a perfectly tailored cooling experience.
Circulation Fan Types
Product Name | Power | Air Flow@0.00″SP | Rotation Speed | CFM/Watt | Remote Contral |
38″ Square Panel Fan | 410W / 0.6HP@3PH 460V | 16070 CFM | 750 RPM | 39 | RS485/0-10v BonaAPP |
45″ Square Panel Fan | 600W / 0.8HP@3PH 460V | 23960 CFM | 610 RPM | 40 | RS485/0-10v BonaAPP |
72″ Louver Fan | 2000W / 2.7HP@3PH 460V | 70630 CFM | 345 RPM | 35 | RS485/0-10v BonaAPP |
38″ Panel Fan | 300W / 0.4HP@3PH 460V | 16070 CFM | 750 RPM | 54 | RS485/0-10v BonaAPP |

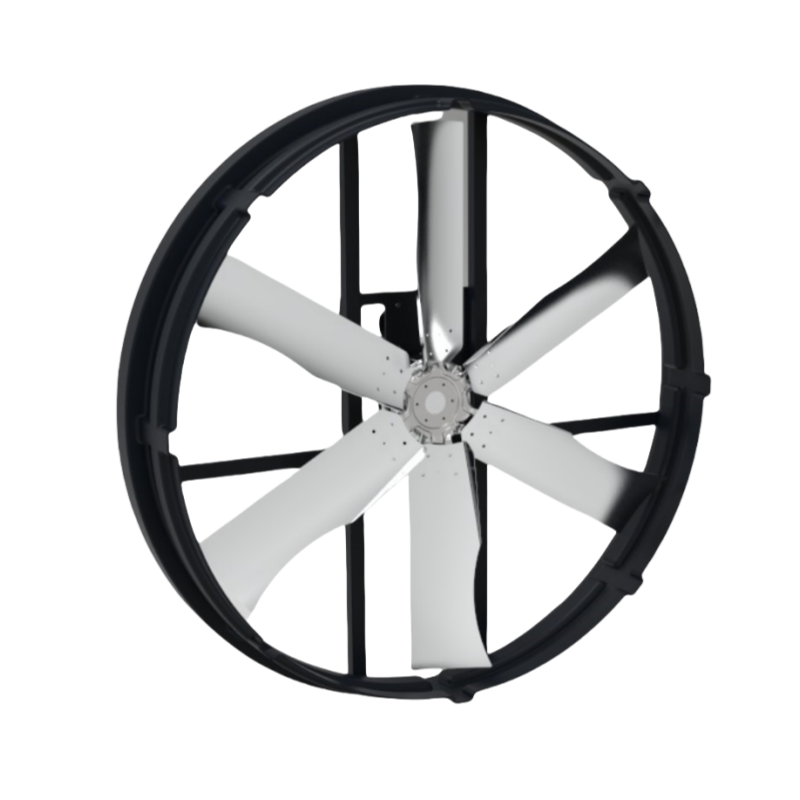

55″ Panel Fan | 1000W / 1.4HP@3PH 460V | 35320 CFM | 460 RPM | 35 | RS485/0-10v BonaAPP |
72″ Panel Fan | 2000W / 2.7HP@3PH 460V | 70630 CFM | 345 RPM | 35 | RS485/0-10v BonaAPP |
